Bat Robot /is the result of the perfect combination of robot technology,visual recognition technology and conveyor belt tracking technology, which can accurately track the speed of the cohveyor belt in the fast flow process,identify the position,color，shape，size,etc. of objects/ through visual intelligence, carry out packing,sorting, arrangement etc. according to specific requirements,and greatly improves the efficiency of the production line and reduces the operation cost of the enterprise with its speed and flexibility.
With excellent qualities and capabilities, our delta robots can improve your automation production efficiently while cutting down costs.
Bat robot adopts fast-response servodrive system and highly-optimized transmission structure.At the sametime，it is equipped with the control system of the robot independently developed by Robotphoenix，which greatly improves the motion speed and acceleration. For the standard stroke,the working cycle of the robot can reach 0.22s，which fully meets the requirements of high-speed production.
The controller of BAT Series is not only a motion controller, but also a machine control system integrated with visual processing and belt tracking; motion control module is in charge of processing and motion control of algorithms such as machine kinematics, path planning etc.; visual module includes vision calibration, module matching and image processing; tracking module matches visual processing results with the operation of the external conveyor line for dynamic tracking to realize seamless connection between the machine and vision.
It has a generous, simple and friendly human-machine interface, as well as high-reliable buttons and touch-screen teach pendant; users can easily and quickly complete the robot teaching, program change and other operations, which requires just a few steps to complete the motion object and range of the robot, and can also intuitively understand the production status and progress.
Bat robot can carry objects weighing up to 15 kg.
The re-positioning accuracy can reach 0.02 mm, which is very suitable for high-precision work.
It can provide clean robot for high-precision industries of food, pharmacy and electronics, which has class-0 oil-free and pollution-free, meeting the production requirements of various industries.
BAT-1100, with a footprint of only 1.4m*1.4m, has a working space being a cylinder with a diameter of 1100mm and a height of 250mm.
The structure of the robot adopts modular design, which is convenient for maintenance; the quick gripping mechanism makes the change of product line easy and fast.
Robotphoenix controller realizes any axis control, realizes information sharing through internal communication, and can share a set of vision system with multiple robots.

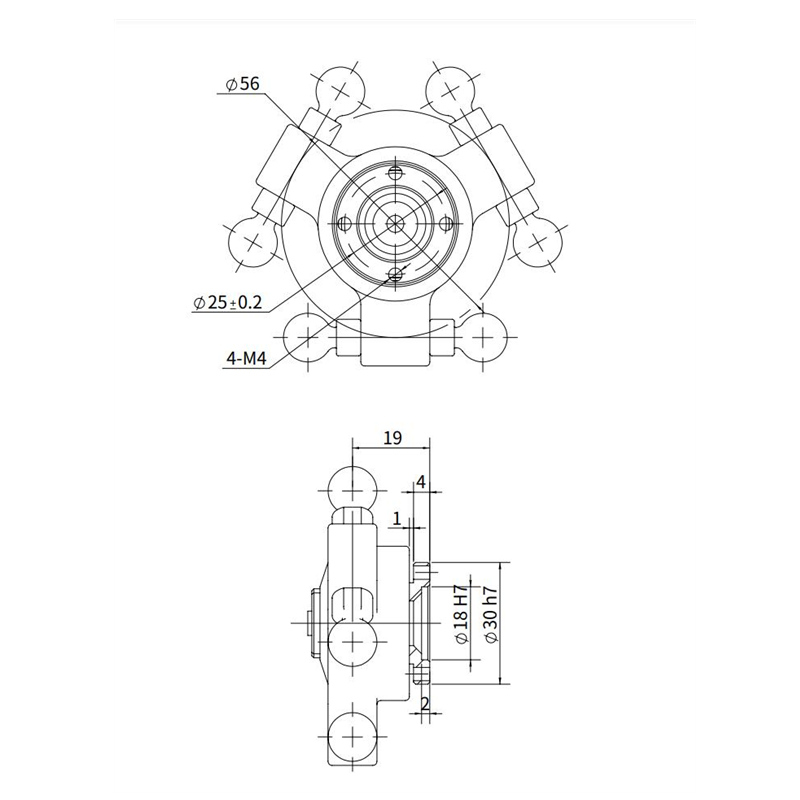

| FEATURE | Bat360-A1 | ||
| Specification | Rated load | 1kg | |
| Working Space diameter | 360mm | ||
| Number of axes | 4 | ||
| Performance | Re-positioning accuracy | 0.08mm | |
| 25 / 305 / 25 | 0.1kg | 0.3s | |
| 1kg | 0.38s | ||
| 3kg | |||
| 6kg | |||
| 90 / 400 / 90 | 0.1kg | 0.46s | |
| 1kg | 0.52s | ||
| 3kg | |||
| 6kg | |||
| Max. Speed | 6m/s | ||
| Max. Acceleration | 120m/s² | ||
| Work Space | A(mm) | 462mm | |
| A1(mm) | 300mm | ||
| B(mm) | 100mm | ||
| C(mm) | 40mm | ||
| D1(mm) | 360mm | ||
| D2(mm) | 150mm | ||
| Electrical Connection | Voltage | 220V，50/60HZ | |
| Rated power | 1.6KW | ||
| Environment | Ambient temperature | 0-45℃ | |
| Relative humidity | 5-95% | ||
| IP ratings | IP54 | ||
| Safety | Monitor, EM Stop and Safety Switch | ||
| Radiation | EMC shielded | ||
| Mounting | Mounting methods | Suspended | |
| Weight (excl. Frame) | 50kg | ||
| Interface | I\O interface | 4 configurable digital inputs and outputs 8 general digital inputs and outputs Re-extensible 32 digital inputs and outputs |
|
| Ethernet | 1 | ||
| USB | 2 | ||
| RS232\RS485 | 1 | ||
| Communication protocol | Modbus-RTU/TCP、Socket | ||
